WP 2.2.4 - Strut and tie modeling
fib’s WP2.2.4 is a group of structural engineers working actively both in profession and academia with interests in the field of strut-and-tie and stress fields. The group focus on developing state-of-the-art tools and design approaches based on these methods with application to structural concrete. Thanks to its practical experience and access to real cases, new and classical approaches are used for design and assessment of practical situations, investigating on their theoretical consistency and opportunities. The last major contribution of the group has been the publication of fib bulletin 100, which gathers the latest state-of-the art on the strut-and-tie and stress field methods.
The main objective of this webpage is to provide a dynamic platform and to complement the existing written documentation, which is static by nature. Through this webpage the group aims to approach professional engineers that are interested in the application of strut-and-tie and stress fields. In this sense, the group highly values the interaction between profession-academia and practice-research and is open for discussions on the application of the methods to practical examples and understanding the difficulties engineers encounter on their daily basis.
STRUT-AND-TIE & STRESS FIELDS
Introduction
Strut-and-tie models and stress fields have been widely used for decades in structural engineering for designing new structures and for assessing the structural capacity of existing ones. Stress fields and strut-and-tie models are currently seen as consistent and alternative means to calculate the same physical model, their original development and application were however historically different.
The power of these two methods resides in their wide range of applicability and the intuitive understanding of the structural response they provide. Regarding the former, strut-and-tie and stress field models have been considered as tools mostly addressed to regions where beam design theory does not apply, as for instance deep beams or discontinuities in geometry and loading; this scope was however widened when limit analysis design methods were introduced and generalised for beams with transverse reinforcement. Depending on the scale chosen, strut-and-tie and stress field modes can be used from detailed reinforcement design to global structural analysis and design. Regarding the latter, it is a pre-requisite for the development of strut-and-tie and stress field models to understand the flow of forces, which ultimately leads to more consistent designs. This aspect is considered of especial relevance in current engineering practice, where the use of computer software in a relatively automatic manner has generally reduced the time devoted to the conceptual design phase.
Application of strut-and-tie and stress field models for the design of the main piers of the Padre Cruz viaduct (Lisbon, Portugal)

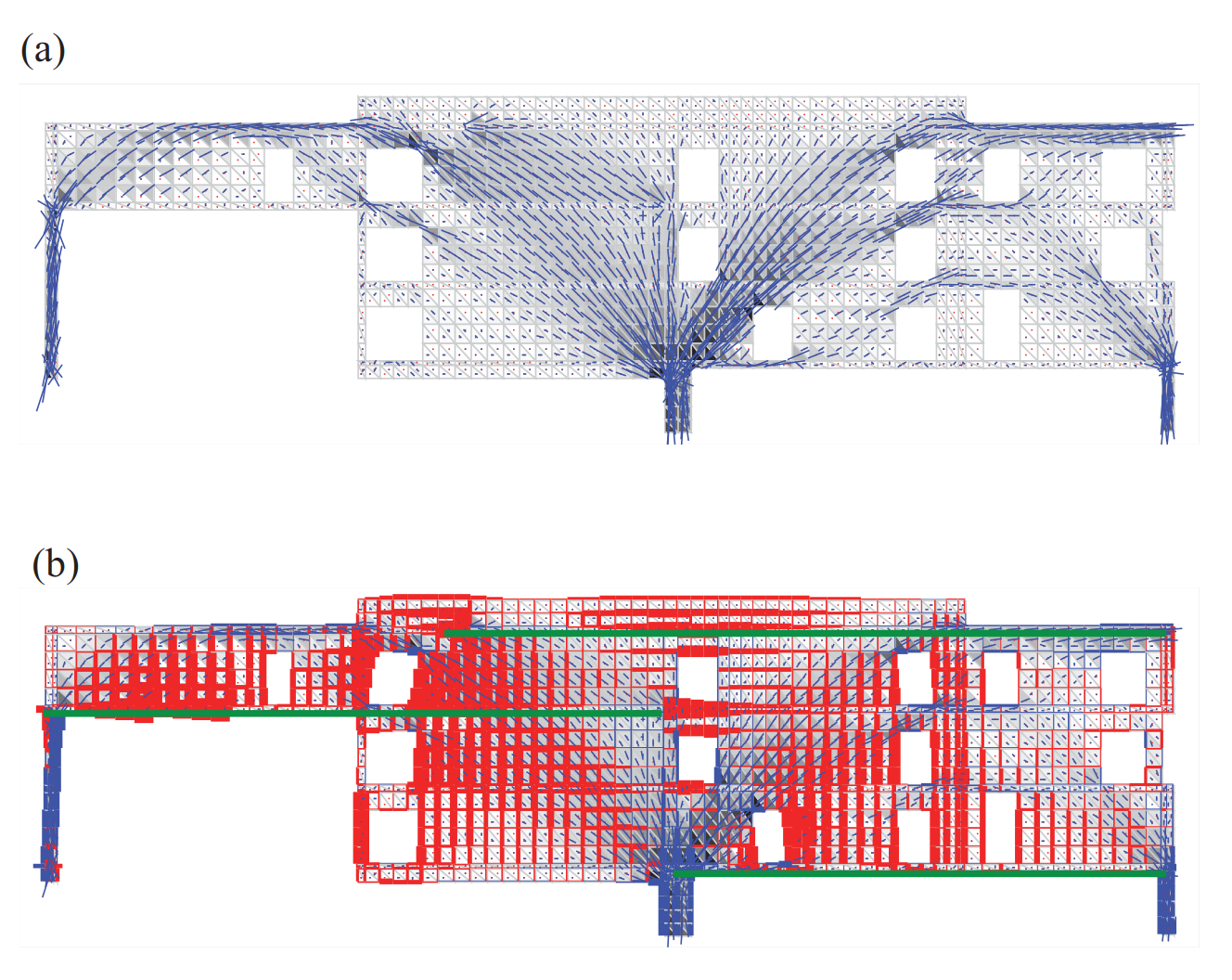

Analysis of bearing walls for Léman School (Renens, Switzerland) by means of elastic-plastic stress fields: a) compression field principal directions; (b) stresses in the reinforcement (green for post-tensioning tendons)
Level-of-Approximation approach
Another concept developed by the WP2.2.4 is the application of the Level-of-Approximation (LoA) approach to strut-and-tie and stress field modelling, i.e. the level of accuracy of strength and/or behaviour prediction, is progressively refined by successively increasing the model refinement. This is extremely useful for practical purposes and the selection of the appropriate LoA depend on several aspects: the design phase of the project (preliminary design, detailed design, etc.), on local or global structural complexity, the influence of local behaviour to global structural response, whether assessment or design of a structure is at play, etc.
The suitable design strategy and the adequate LoA for a specific case should be defined employing the required accuracy and the time devoted to the analysis. For example: for new structures, simple and safe load-carrying models are to be used. To that end, the use of strut-and-tie models with some local refinements via rigid-plastic stress fields is normally adequate. This provides a lower-bound of the actual strength and yields sufficient freedom to the designer to decide on the location on the main reinforcement, allowing ease of construction. Only when complex or critical elements are to be designed, refined analysis is justified (for instance by accounting for kinematic compatibility). On the other hand, for the assessment of existing structures, simple models (lower-bound solutions) can be used at first to identify non-critical regions (where the strength is satisfied even for the simple load-carrying models). In those critical regions in which simple lower-bound solutions do not verify that adequate strength is provided, further model refinement is justified in order to avoid, or minimise, strengthening (note that the savings in strengthening largely compensate for the cost of additional studies). Refined assessment models can be developed by accounting, for instance, for kinematic considerations. Nevertheless, it should be noted that the deformation capacity of the structure is to be verified so that plastic stress redistribution can effectively occur.
